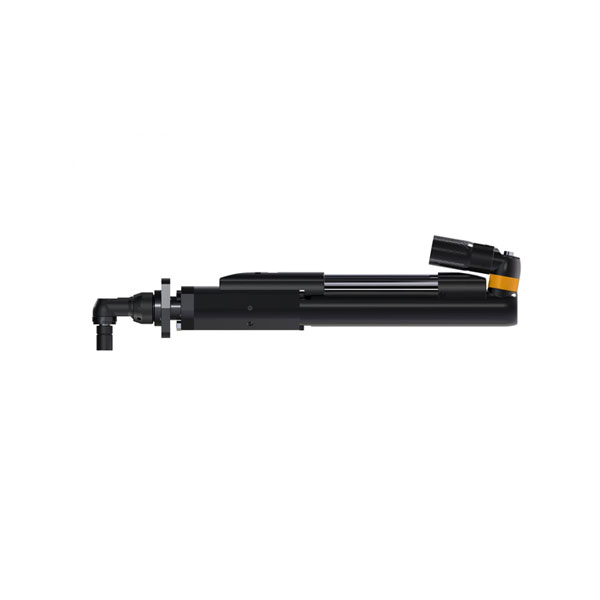

Atlas阿特拉斯QST系列固定式扳手
Atlas QST系列固定式扳手特点优势
经过 ISO 认证
低维护成本
旨在提供灵活性
智能连接组件的一部分
出色的质量性能和准确度
新的坚固的马达和连接器
针对机器人应用的特殊电缆设计
冗余传感器和角度编码器（可选）
螺母扳手和控制器之间的数字通讯
热交换，更换电缆或主轴而不关闭电源
由于不需要外部PLC，因此易于整合和控制
高可靠性，耐用性和平均故障间隔时间(MTBF) - 超过100万个工作周期
许多特殊的机械设计可供选择 - （角度头，偏置，HAD，同轴，延长弹簧行程等等）
阿特拉斯 固定式扳手QST系列各型号技术参数
| 型号 | ID | 扭矩范围值 | 扭矩范围值 | 重量 | 速度 | 套筒固定器尺寸 | 行程 | C-C | A | B | C | D | 齿轮比 | 声音标准 | 经过 EAC 认证 | KC ID | 经过 KC 认证 | EC 标准 | WEEE | EU 指令 | 声压 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QST80-600CT-T76-L214-H19 | 8435608011 | 442 ft lb | 88 ft lb | 37 lb | 200 r/min | 3/4 inch | 76 mm | 81 | 214 mm | 43 mm | 595 mm | 20 mm | 29.6 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <75 dB(A) |
| QST90-1000CTTA-T50-L152-H25 | 8435609070 | 737 ft lb | 147 ft lb | 57 lb | 130 r/min | 1 inch | 50 mm | 91 | 152 mm | 32 mm | 600 mm | 20 mm | 46.84 | ISO15744 | Yes | na | No | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <75 dB(A) |
| QST50-170CTV-P13 | 9831407838 | 125 ft lb | 25 ft lb | 15 lb | 210 r/min | 1/2 inch | 51 | 135 mm | 15 mm | 56.2 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) | |||
| QST90-1000COT-T50-L152-H25 | 8435609020 | 737 ft lb | 147 ft lb | 66 lb | 130 r/min | 1 inch | 50 mm | 63 | 153 mm | 46.84 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <75 dB(A) | |||
| QST62-350CTV-H19 | 9831407973 | 258 ft lb | 52 ft lb | 30 lb | 120 r/min | 3/4 inch | 66 | 153 mm | 15 mm | 51 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) | |||
| QST50-90CTT-T50-L137-H13 | 8435604050 | 65 ft lb | 15 ft lb | 12.7 lb | 650 r/min | 1/2 inch | 50 mm | 51 | 137 mm | 23 mm | 464 mm | 15 mm | 18.21 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) |
| QST42-50CT-T50-L134-H13 | 8435603010 | 35 ft lb | 7 ft lb | 8.4 lb | 700 r/min | 1/2 inch | 50 mm | 43 | 134 mm | 23 mm | 422 mm | 15 mm | 21.33 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) |
| QST90-1000CT-T50-L152-H25 | 8435609010 | 737 ft lb | 147 ft lb | 57 lb | 130 r/min | 1 inch | 50 mm | 91 | 152 mm | 32 mm | 600 mm | 20 mm | 46.84 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <75 dB(A) |
| QST90-750COTT-T50-L152-H25 | 8435608560 | 553 ft lb | 111 ft lb | 64 lb | 150 r/min | 1 inch | 50 mm | 63 | 103 mm | 38.89 | ISO15744 | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2004/108/EC, 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7) | <75 dB(A) | ||||
| QST80-450COTT-T50-L146-H19 | 8435607560 | 332 ft lb | 66 ft lb | 46 lb | 260 r/min | 3/4 inch | 50 mm | 55 | 146 mm | 22.67 | ISO15744 | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2004/108/EC, 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7) | <75 dB(A) | ||||
| QST42-70CTV-T25-H13 | 9831407759 | 52 ft lb | 10 ft lb | 12 lb | 440 r/min | 1/2 inch | 25 mm | 39 | 33 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1:2010, EN 61010-2-201:2013, EN 12100 | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3),1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) | ||||
| QST50-150CTTA-T50-L137-H13 | 8435605070 | 110 ft lb | 22 ft lb | 12.8 lb | 380 r/min | 1/2 inch | 50 mm | 51 | 137 mm | 23 mm | 464 mm | 15 mm | 31.24 | ISO15744 | Yes | na | No | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) |
| QST34-8CT-T50-L150-H6 | 8435600010 | 6 ft lb | 1.5 ft lb | 4.4 lb | 3000 r/min | 1/4 inch | 50 mm | 34 | 150 mm | 16 mm | 359 mm | 10 mm | 7.428 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) |
| QST42-50CTTA-T50-L134-H13 | 8435603070 | 35 ft lb | 7 ft lb | 8.4 lb | 700 r/min | 1/2 inch | 50 mm | 43 | 134 mm | 23 mm | 422 mm | 15 mm | 21.33 | ISO15744 | Yes | na | No | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) |
| QST90-750CT-T76-L176-H25 | 8435608511 | 553 ft lb | 111 ft lb | 64 lb | 150 r/min | 1 inch | 50 mm | 63 | 153 mm | 38.89 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <75 dB(A) | |||
| QST42-70CTV-P13 | 9831407728 | 52 ft lb | 10 ft lb | 10 lb | 440 r/min | 1/2 inch | 40 | 84 mm | 15 mm | 33 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) | |||
| QST90-1000CT-T76-L176-H25 | 8435609011 | 737 ft lb | 147 ft lb | 57 lb | 130 r/min | 1 inch | 76 mm | 91 | 176 mm | 32 mm | 650 mm | 20 mm | 46.8 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <75 dB(A) |
| QST50-170CTV-T50-H13 | 9831407844 | 125 ft lb | 25 ft lb | 19 lb | 210 r/min | 1/2 inch | 50 mm | 48 | 56.2 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1:2010, EN 61010-2-201:2013, EN 12100 | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3),1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) | ||||
| QST50-150COTT-T50-L137-H13 | 8435605060 | 110 ft lb | 22 ft lb | 17.2 lb | 380 r/min | 1/2 inch | 50 mm | 37 | 137 mm | 31.24 | ISO15744 | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2004/108/EC, 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7) | <70 dB(A) | ||||
| QST80-450CTT-T50-L146-H19 | 8435607550 | 332 ft lb | 66 ft lb | 37 lb | 260 r/min | 3/4 inch | 50 mm | 81 | 146 mm | 30 mm | 595 mm | 20 mm | 22.67 | ISO15744 | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2004/108/EC, 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7) | <75 dB(A) | |
| QST62-350CTTA-T50-L152-H19 | 8435607070 | 258 ft lb | 37 ft lb | 22.5 lb | 220 r/min | 3/4 inch | 50 mm | 63 | 152 mm | 25 mm | 542 mm | 15 mm | 28.33 | ISO15744 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) | ||
| QST80-600COT-T50-L146-H19 | 8435608020 | 442 ft lb | 88 ft lb | 46 lb | 200 r/min | 3/4 inch | 50 mm | 55 | 146 mm | 29.56 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <75 dB(A) | |||
| QST62-350CTT-T50-L152-H19 | 8435607050 | 258 ft lb | 37 ft lb | 22.5 lb | 220 r/min | 3/4 inch | 50 mm | 63 | 152 mm | 25 mm | 542 mm | 15 mm | 28.33 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) |
| QST34-20CT-T50-L150-H10 | 8435601010 | 14.7 ft lb | 2.9 ft lb | 4.4 lb | 1000 r/min | 3/8 inch | 50 mm | 34 | 150 mm | 16 mm | 359 mm | 10 mm | 21.2 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) |
| QST50-200CTV-T50-H19 | 9831407847 | 145 ft lb | 29 ft lb | 22 lb | 210 r/min | 3/4 inch | 50 mm | 51 | 135 mm | 15 mm | 56.2 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) | ||
| QST62-230COTT-T50-L152-H19 | 8435606560 | 162 ft lb | 29 ft lb | 28.2 lb | 330 r/min | 3/4 inch | 50 mm | 45 | 152.5 mm | 19.04 | ISO15744 | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2004/108/EC, 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7) | <70 dB(A) | ||||
| QST42-20CTTA-T50-L134-H10 | 8435602070 | 14 ft lb | 4 ft lb | 6.9 lb | 2000 r/min | 3/8 inch | 50 mm | 43 | 134 mm | 23 mm | 395 mm | 15 mm | 7.5 | ISO15744 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) | ||
| QST50-150CT-T50-L137-H13 | 8435605010 | 110 ft lb | 22 ft lb | 12.8 lb | 380 r/min | 1/2 inch | 50 mm | 51 | 137 mm | 23 mm | 464 mm | 15 mm | 31.24 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) |
| QST62-230CT-T50-L152-H19 | 8435606510 | 170 ft lb | 29 ft lb | 22.5 lb | 330 r/min | 3/4 inch | 50 mm | 63 | 152 mm | 25 mm | 517 mm | 15 mm | 19.04 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) |
| QST50-90CT-T76-L200-H13 | 8435604011 | 65 ft lb | 15 ft lb | 12.7 lb | 650 r/min | 1/2 inch | 76 mm | 51 | 200 mm | 25 mm | 493 mm | 15 mm | 18.2 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) |
| QST42-20COT-T50-L134-H10 | 8435602020 | 14 ft lb | 4 ft lb | 9.3 lb | 2000 r/min | 3/8 inch | 50 mm | 31 | 134.5 mm | 7.5 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) | |||
| QST42-30CTV-P10 | 9831407726 | 22 ft lb | 4.5 ft lb | 7 lb | 440 r/min | 3/8 inch | 36 | 83 mm | 8 mm | 11.6 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) | |||
| QST42-50CT-T76-L189-H13 | 8435603011 | 35 ft lb | 7 ft lb | 8.4 lb | 700 r/min | 1/2 inch | 76 mm | 43 | 189 mm | 23 mm | 447 mm | 15 mm | 21.3 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) |
| QST62-230CT-T76-L200-H19 | 8435606511 | 170 ft lb | 29 ft lb | 22.5 lb | 330 r/min | 3/4 inch | 76 mm | 63 | 200 mm | 25 mm | 543 mm | 15 mm | 19 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) |
| QST80-600COTT-T50-L146-H19 | 8435608060 | 442 ft lb | 88 ft lb | 46 lb | 200 r/min | 3/4 inch | 50 mm | 55 | 146 mm | 29.56 | ISO15744 | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2004/108/EC, 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7) | <75 dB(A) | ||||
| QST50-90CTTA-T50-L137-H13 | 8435604070 | 65 ft lb | 15 ft lb | 12.7 lb | 650 r/min | 1/2 inch | 50 mm | 51 | 137 mm | 23 mm | 464 mm | 15 mm | 18.21 | ISO15744 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) | ||
| QST95-1750CT-T50-L149-H38 | 8435609510 | 1291 ft lb | 258 ft lb | 61.7 lb | 60 r/min | 1 1/2 inch | 50 mm | 96 | 149 mm | 32 mm | 651 mm | 20 mm | 98.21 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1:2010, EN 61010-2-201:2013, EN 12100 | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3),1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <75 dB(A) |
| QST80-450COT-T50-L146-H19 | 8435607520 | 332 ft lb | 66 ft lb | 46 lb | 260 r/min | 3/4 inch | 50 mm | 55 | 146 mm | 22.67 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <75 dB(A) | |||
| QST42-20CTT-T50-L134-H10 | 8435602050 | 14 ft lb | 4 ft lb | 6.9 lb | 2000 r/min | 3/8 inch | 50 mm | 43 | 134 mm | 23 mm | 395 mm | 15 mm | 7.5 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) |
| QST80-600CTT-T50-L146-H19 | 8435608050 | 442 ft lb | 88 ft lb | 37 lb | 200 r/min | 3/4 inch | 50 mm | 81 | 146 mm | 30 mm | 595 mm | 20 mm | 29.56 | ISO15744 | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <75 dB(A) | |
| QST42-20CTV-P10 | 9831407727 | 14 ft lb | 4 ft lb | 7 lb | 1200 r/min | 3/8 inch | 28 | 73.6 mm | 8 mm | 11.9 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1:2010, EN 61010-2-201:2013, EN 12100 | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3),1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) | |||
| QST62-150CTT-T50-L152-H13 | 8435606050 | 110 ft lb | 22 ft lb | 22.5 lb | 450 r/min | 1/2 inch | 50 mm | 63 | 152 mm | 25 mm | 542 mm | 15 mm | 13.94 | ISO15744 | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) | |
| QST62-350CT-T50-L152-H19 | 8435607010 | 258 ft lb | 37 ft lb | 22.5 lb | 220 r/min | 3/4 inch | 50 mm | 63 | 152 mm | 25 mm | 517 mm | 15 mm | 28.33 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) |
| QST80-450CTTA-T50-L146-H19 | 8435607570 | 332 ft lb | 66 ft lb | 36.9 lb | 260 r/min | 3/4 inch | 50 mm | 81 | 146 mm | 30 mm | 595 mm | 20 mm | 22.67 | ISO15744 | Yes | na | No | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <75 dB(A) |
| QST62-350COTT-T50-L152-H19 | 8435607060 | 243 ft lb | 37 ft lb | 28.2 lb | 220 r/min | 3/4 inch | 50 mm | 45 | 152 mm | 28.33 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) | |||
| QST50-200CTV-T25-H19 | 9831407846 | 145 ft lb | 29 ft lb | 21 lb | 210 r/min | 3/4 inch | 25 mm | 51 | 135 mm | 15 mm | 56.2 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) | ||
| QST62-230CTT-T50-L152-H19 | 8435606550 | 170 ft lb | 29 ft lb | 22.5 lb | 330 r/min | 3/4 inch | 50 mm | 63 | 152 mm | 25 mm | 542 mm | 15 mm | 19.04 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) |
| QST62-150CT-T50-L152-H13 | 8435606010 | 110 ft lb | 22 ft lb | 22.5 lb | 450 r/min | 1/2 inch | 50 mm | 63 | 152 mm | 25 mm | 517 mm | 15 mm | 13.94 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) |
| QST90-1000CTT-T50-L152-H25 | 8435609050 | 737 ft lb | 147 ft lb | 57 lb | 130 r/min | 1 inch | 50 mm | 91 | 152 mm | 32 mm | 600 mm | 20 mm | 46.84 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2004/108/EC, 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7) | <75 dB(A) |
| QST50-150CT-T76-L200-H13 | 8435605011 | 110 ft lb | 22 ft lb | 12.8 lb | 380 r/min | 1/2 inch | 76 mm | 51 | 200 mm | 25 mm | 493 mm | 15 mm | 31.2 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) |
| QST80-450CT-T76-L214-H19 | 8435607511 | 332 ft lb | 66 ft lb | 37 lb | 260 r/min | 3/4 inch | 50 mm | 81 | 214 mm | 43 mm | 595 mm | 20 mm | 22.67 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <75 dB(A) |
| QST62-150COT-T50-L152-H13 | 8435606020 | 110 ft lb | 22 ft lb | 28.2 lb | 450 r/min | 1/2 inch | 50 mm | 45 | 152.5 mm | 13.94 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) | |||
| QST90-750CT-T50-L152-H25 | 8435608510 | 553 ft lb | 111 ft lb | 55 lb | 150 r/min | 1 inch | 50 mm | 91 | 152 mm | 32 mm | 600 mm | 20 mm | 38.89 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <75 dB(A) |
| QST95-1750COT-T50-L155-H38 | 8435609520 | 1291 ft lb | 258 ft lb | 94.8 lb | 60 r/min | 1 1/2 inch | 50 mm | 73 | 155 mm | 98.21 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <75 dB(A) | |||
| QST42-50CT-T100-L191-H13 | 8435603012 | 35 ft lb | 7 ft lb | 8.4 lb | 700 r/min | 1/2 inch | 100 mm | 43 | 191 mm | 23 mm | 519 mm | 15 mm | 21.3 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) |
| QST62-350COT-T50-L152-H19 | 8435607020 | 243 ft lb | 37 ft lb | 28.2 lb | 220 r/min | 3/4 inch | 50 mm | 45 | 152 mm | 28.33 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) | |||
| QST50-150CTT-T50-L137-H13 | 8435605050 | 110 ft lb | 22 ft lb | 12.8 lb | 380 r/min | 1/2 inch | 50 mm | 51 | 137 mm | 23 mm | 464 mm | 15 mm | 31.24 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) |
| QST42-50COTT-T50-L134-H13 | 8435603060 | 35 ft lb | 7 ft lb | 9.9 lb | 700 r/min | 1/2 inch | 50 mm | 31 | 134 mm | 21.33 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) | |||
| QST50-90CT-T50-L137-H13 | 8435604010 | 65 ft lb | 15 ft lb | 12.7 lb | 650 r/min | 1/2 inch | 50 mm | 51 | 137 mm | 23 mm | 464 mm | 15 mm | 18.21 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) |
| QST90-750CTTA-T50-L152-H25 | 8435608570 | 553 ft lb | 111 ft lb | 55 lb | 150 r/min | 1 inch | 50 mm | 91 | 152 mm | 32 mm | 600 mm | 20 mm | 38.89 | ISO15744 | Yes | na | No | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <75 dB(A) |
| QST80-600CTTA-T50-L146-H19 | 8435608070 | 442 ft lb | 88 ft lb | 37 lb | 200 r/min | 3/4 inch | 50 mm | 81 | 146 mm | 30 mm | 595 mm | 20 mm | 29.56 | ISO15744 | Yes | na | No | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <75 dB(A) |
| QST62-230CTTA-T50-L152-H19 | 8435606570 | 170 ft lb | 29 ft lb | 22.5 lb | 330 r/min | 3/4 inch | 50 mm | 63 | 152 mm | 25 mm | 542 mm | 15 mm | 19.04 | ISO15744 | Yes | na | No | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) |
| QST42-20COTT-T50-L134-H10 | 8435602060 | 14 ft lb | 4 ft lb | 9.3 lb | 2000 r/min | 3/8 inch | 50 mm | 31 | 134 mm | 7.5 | ISO15744 | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) | ||||
| QST50-200CTV-H19 | 9831407843 | 145 ft lb | 29 ft lb | 15 lb | 210 r/min | 3/4 inch | 51 | 135 mm | 15 mm | 56.2 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) | |||
| QST80-450CT-T50-L146-H19 | 8435607510 | 332 ft lb | 66 ft lb | 38.8 lb | 265 r/min | 3/4 inch | 50 mm | 81 | 146 mm | 30 mm | 591 mm | 20 mm | 22.67 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1:2010, EN 61010-2-201:2013, EN 12100 | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3),1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <75 dB(A) |
| QST62-230COT-T50-L152-H19 | 8435606520 | 162 ft lb | 29 ft lb | 28.2 lb | 330 r/min | 3/4 inch | 50 mm | 45 | 152.5 mm | 19.04 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) | |||
| QST42-20CTV-T25-H10 | 9831407757 | 14 ft lb | 4 ft lb | 11 lb | 1200 r/min | 3/8 inch | 25 mm | 28 | 11.6 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1:2010, EN 61010-2-201:2013, EN 12100 | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3),1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) | ||||
| QST62-350CT-T76-L200-H19 | 8435607011 | 258 ft lb | 37 ft lb | 22.5 lb | 220 r/min | 3/4 inch | 76 mm | 63 | 200 mm | 25 mm | 543 mm | 15 mm | 28.3 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) |
| QST90-750CTT-T50-L152-H25 | 8435608550 | 553 ft lb | 111 ft lb | 55 lb | 150 r/min | 1 inch | 50 mm | 91 | 146 mm | 30 mm | 595 mm | 20 mm | 38.89 | ISO15744 | R-REI-50A-QST50 | Yes | EN 61010-1:2010, EN 61010-2-201:2013, EN 12100, EN 61010-1:2010, EN 61010-2-201:2013, EN 12100 | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3),1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <75 dB(A) | |
| QST50-150CT-T100-L186-H13 | 8435605012 | 110 ft lb | 22 ft lb | 12.8 lb | 380 r/min | 1/2 inch | 100 mm | 51 | 186 mm | 23 mm | 563 mm | 15 mm | 31.2 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) |
| QST62-150CTTA-T50-L152-H13 | 8435606070 | 110 ft lb | 22 ft lb | 22.5 lb | 450 r/min | 1/2 inch | 50 mm | 63 | 152 mm | 25 mm | 542 mm | 15 mm | 13.94 | ISO15744 | Yes | na | No | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) |
| QST50-90COT-T50-L137-H13 | 8435604020 | 65 ft lb | 15 ft lb | 17.2 lb | 650 r/min | 1/2 inch | 50 mm | 37 | 137 mm | 18.21 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) | |||
| QST50-90COTT-T50-L137-H13 | 8435604060 | 65 ft lb | 15 ft lb | 17.2 lb | 650 r/min | 1/2 inch | 50 mm | 37 | 137 mm | 18.21 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) | |||
| QST80-600CT-T50-L146-H19 | 8435608010 | 442 ft lb | 88 ft lb | 37 lb | 200 r/min | 3/4 inch | 50 mm | 81 | 146 mm | 30 mm | 595 mm | 20 mm | 29.56 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <75 dB(A) |
| QST90-750COT-T50-L152-H25 | 8435608520 | 553 ft lb | 111 ft lb | 64 lb | 150 r/min | 1 inch | 50 mm | 63 | 153 mm | 38.89 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <75 dB(A) | |||
| QST42-50CTT-T50-L134-H13 | 8435603050 | 35 ft lb | 7 ft lb | 8.4 lb | 700 r/min | 1/2 inch | 50 mm | 43 | 134 mm | 23 mm | 422 mm | 15 mm | 21.33 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) |
| QST42-50COT-T50-L134-H13 | 8435603020 | 35 ft lb | 7 ft lb | 9.9 lb | 700 r/min | 1/2 inch | 50 mm | 31 | 134.5 mm | 21.33 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) | |||
| QST42-20CT-T50-L134-H10 | 8435602010 | 14 ft lb | 4 ft lb | 6.9 lb | 2000 r/min | 3/8 inch | 50 mm | 43 | 134 mm | 23 mm | 395 mm | 15 mm | 7.5 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) |
| QST62-150COTT-T50-L152-H13 | 8435606060 | 110 ft lb | 22 ft lb | 28.2 lb | 450 r/min | 1/2 inch | 50 mm | 45 | 137 mm | 13.94 | ISO15744 | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2004/108/EC, 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7) | <70 dB(A) | ||||
| QST50-150COT-T50-L137-H13 | 8435605020 | 110 ft lb | 22 ft lb | 17.2 lb | 380 r/min | 1/2 inch | 50 mm | 37 | 137 mm | 31.24 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) | |||
| QST62-600CTV-H25 | 9831408702 | 440 ft lb | 88 ft lb | 33 lb | 100 r/min | 1 inch | 109 | 174 mm | 14 mm | 93.5 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) | |||
| QST90-1000COTT-T50-L152-H25 | 8435609060 | 737 ft lb | 147 ft lb | 66 lb | 130 r/min | 1 inch | 50 mm | 63 | 153 mm | 46.84 | ISO15744 | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2004/108/EC, 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7) | <75 dB(A) | ||||
| QST42-30CTV-T25-H10 | 9831407758 | 22 ft lb | 4.5 ft lb | 12 lb | 440 r/min | 3/8 inch | 25 mm | 36 | 33 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1:2010, EN 61010-2-201:2013, EN 12100 | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3),1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) | ||||
| QST62-350CTV-T25-H19 | 9831408710 | 258 ft lb | 52 ft lb | 33 lb | 120 r/min | 3/4 inch | 25 mm | 66 | 187 mm | 14 mm | 51 | ISO15744 | Yes | na | No | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) | ||
| QST42-20CT-T76-L189-H10 | 8435602011 | 14 ft lb | 4 ft lb | 6.9 lb | 2000 r/min | 3/8 inch | 76 mm | 43 | 189 mm | 23 mm | 421 mm | 15 mm | 7.5 | ISO15744 | Yes | R-REI-50A-QST50 | Yes | EN 61010-1 (2010), EN 61800-3(2004) +A1(2012) | 6 - Electrical and Electronic Tools | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2011/65/EU, 2014/30/EU | <70 dB(A) |
